Description
| Platform Information | |

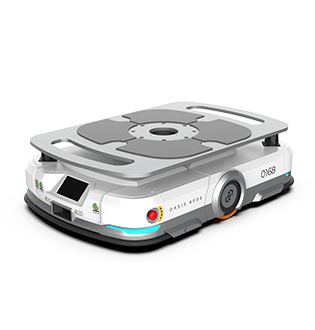

| Model | OASIS 600E-SRL |
| Laser Radar Layout | Dual, diagonal |
| Navigation Mode | Laser SLAM |
| Dimension(L *W * H mm) | 950*635*245 |
| Weight(kg) | 115 |
| Max. Capacity(kg) | 600 |
| 3D Obstacle Detection | Optional |
| QR-code Localization | Optional |
| Communication | Standard: WIFI 5.8Ghz / Optional: 5G newtwork |
| performance | |
| speed(m/s) | 0.05-1.5 |
| turing Diameter(mm) | 0 |
| Rotating Diameter(mm) | 1000 |
| Max. Slope Gradient | 3°/5% |
| Max. Obstacle Height(mm) | 10 |
| Traversable Gap(mm) | 30 |
| Min. Aisle Width(mm) | 835 |
| Min. Rotating Aisle Width(mm) | 1200 |
| Docking Accuracy(mm/°) | ±10/±1 |
| Docking Acurracy(mm) | ±5 |
| Power | |
| Battery Capacity | 51.2V22.8Ah |
| Runtime(h) | 8 |
| Battery Life(charge cycles) | DOD≥80% 1500 |
| Charging Options | Auto, manual and battery replacement |
| Charging Time(h) | 1 |
| Status indicator | |
| Signal Light | Standard |
| Speaker | Standard |
| Display | Standard |
| Environment | |
| Temperature(℃) | 0~50 |
| Humidity(%) | 5~95 |
| Operating Environment | Indoor |
