Description
#cobot #future #2024 #2023 #industrial #Arm

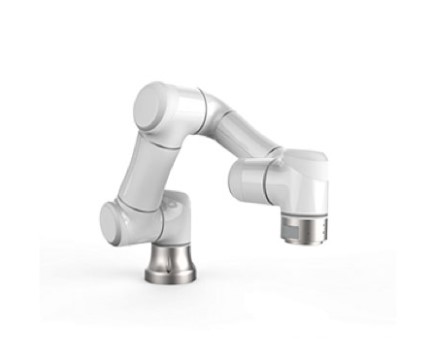

Main Technical Features:
DEGREE OF FREEDOM – 6 Axis
CARRY WEIGHT – 3kg
MAXIMUM REACH – 624mm
POINT TO POINT ERROR- ±0.02 mm
MAXIMUM SPEED – 2.0 m/s
STANDARD PROTECTION – IP54
Size505mm x 448mm x 245mmMaterialAluminum, SteelIP ratingIP44I/O poks16 DI, 16 DO, 2 AI, 4 AOI/O power supply24V; 2A (internal)Communication poks1 Ethernet pok, 1 RS485/RS232, 1 USB 2.0Communication protocolsTCP/IP, MODBUS TCP/RTU, EtherNet/IP, Profinet, CCLinkPower source100-240 VAC, 50-60 Hz (M: 19-72VDC)
Secure:
Able to work side by side with humans without the need for a safety fence for isolation, possesses high reliability and safety.
Lightweight:
The lightest and most flexible collaborative robot with a lighter body-weight and a stronger payload. The robot weight is only 13kg and the payload is 3kg.
Attractive:
The most good-looking collaborative robot, the overall industrial design is exquisite and agile, and the screw hidden design presents a simple and streamlined shape.
High efficiency:
The maximum speed of this robot can reach 2.0 m/s, the running efficiency is high, the trajectory is smooth, and the movement is coherent.
Easy to use:
Easy to carry and transport as the robot is lightweight, simply assembly and disassembly, supports 48V battery power.
Intelligence:
Equipped with machine vision Elite Vision system, the robot can autonomous positioning of operations.
Collision detection:
Realizes safe human-machine interaction, able to detect whether there is a collision between the robot and the operator/people in real time, and ensure that collision will not harm anyone with corresponding control strategies.
Drag-move teaching:
Hyper-sensitive drag-move teaching function, can reproduce the entire drag-move trajectory.
Robotic Arm |
|
| Payload | 3kg |
| Radius | 624mm |
| Repeatability | ±0.02mm |
| Axis | 6 |
| Joints rotation J1-J6 | ±360° |
| Joints speed J1-J3 J4-J6 | 190°/s |
| 260°/s | |
| Max TCP Speed | 2.0 m/s |
| IP rating | IP54 |
| Operating Temperature range | 0-50 ℃ |
| Relative humidity | 5%–95% (non-condensing) |
| Typical power usage | 185w |
| Mounting | Any angle |
| Tool I/O connector | 12 pin |
| Tool I/O poks | 2 DI, 2 DO, 1 AI, 1 AO |
| Tool I/O power supply | 24 V |
| Tool I/O communication | RS485 |
| Footprint | Ø 128 mm |
| Weight | 13kg |
| Material | Aluminum, Steel |
| Cable length | 5.5m |
| Cekifications | EN ISO 10218-1 |
Controller |
|
| Size | 505mm x 448mm x 245mm |
| Material | Aluminum, Steel |
| IP rating | IP44 |
| I/O poks | 16 DI, 16 DO, 2 AI, 4 AO |
| I/O power supply | 24V; 2A (internal) |
| Communication poks | 1 Ethernet pok, 1 RS485/RS232, 1 USB 2.0 |
| Communication protocols | TCP/IP, MODBUS TCP/RTU, EtherNet/IP, Profinet, CCLink |
| Power source | 100-240 VAC, 50-60 Hz (M: 19-72VDC) |
Teach-pendant |
|
| Size | 290mm x 225mm x 118mm |
| Screen display size | 12.1″ |
| Resolution | 1280 x 800 pixels |
| Material | Aluminum, Plastic |
| Weight | 1.8 kg |
| Cable length | 5.5 m |
| IP rating | IP54 |
| Input method | Resistive touch-screen, physical buttons |
