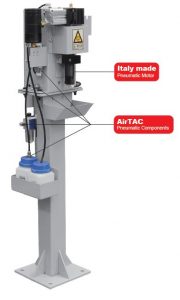

Use for Robotic torch to remove spatters and cut off excessive welding wire (height : 930mm)

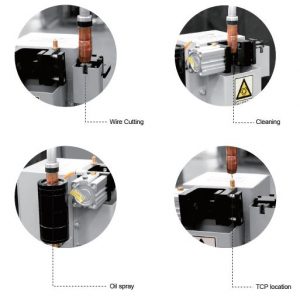

  • Clamping device for gas nozzle max. 28mm OD, no need to change V-block
  • Imported Pneumatic motor, large torque, be able to remove heavy spatter
  • Special reamer and wire cutting blade with high hardness and toughness make the service life is significantly improved
  • Electric motor, cost-effective
  • The special filter element can effectively filter oil, water and impurities in gas path, and improve the lifetime of the equipment
  • Overload protection protects motor from damage
  • Sealed injection space, waste oil can be collected and recycled, environmental friendly
  • High precision, high rigidity cylinder is assembled, and high precision of repeated positioning precisely
  • Full-automation, No manual operation

Technical Specification:

Item Parameter
Input Air Pressure 6-8 Bar, Compressed dry air without oil
Control Currency Imax = 0.15A
Ambient Temp +5°c to +50°c
Wire Cutting Capability Solid wire max diameter 1.6mm & FCAW max diameter 3.2mm
Wire Cutting Time Around 0.5s
Anti Spatter Liquid Volume 500ml
Air Consumption Around 10L/S
]]>
